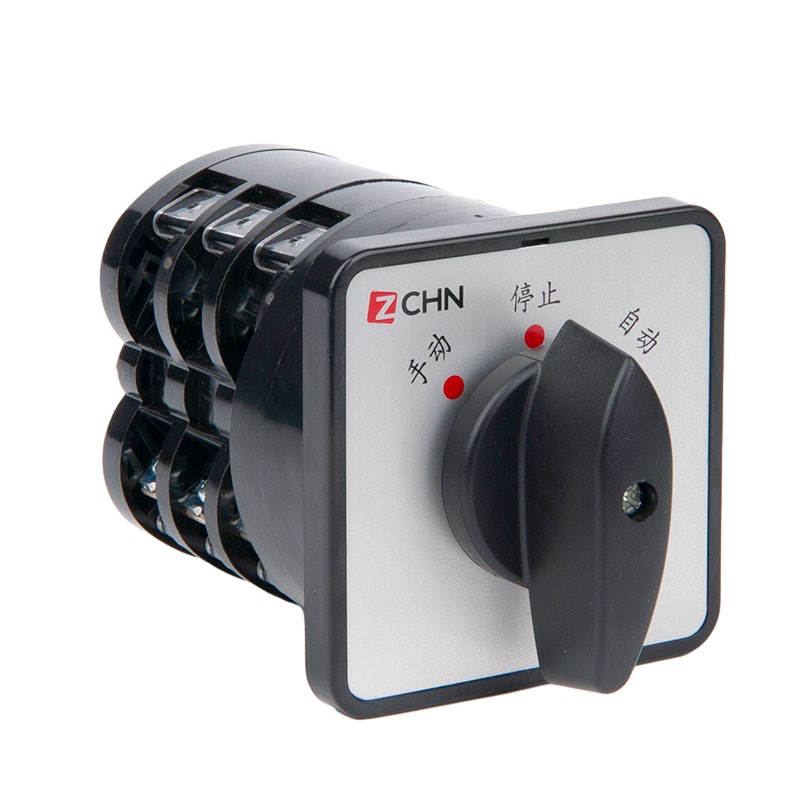

LW5-16 3 POLES 1-0-2 16AMP Cam Switch

LW5-16 3 POLES 1-0-2 16AMP Cam Switch

Basic Parameters

Rated current: 16A, can meet the general electrical control lines and small three-phase squirrel cage asynchronous motor control requirements.

Rated voltage: Suitable for circuits with AC 50Hz, rated working voltage 500V and below, and DC voltage up to 440V.

Number of poles: 3 poles, which means that the switch has three independent conductive paths and can control three-phase circuits at the same time.

Product structure

Operation mechanism: The operation mode is divided into positioning type and self-recovery type. Positioning type operating handle will be fixed in the corresponding position after operation, while the self-recovery type operating handle will automatically return to the initial position after the operating force is removed. The shape of the actuator has two types: knob type and ball pinch type, users can choose according to the actual operational needs and use of the scene.

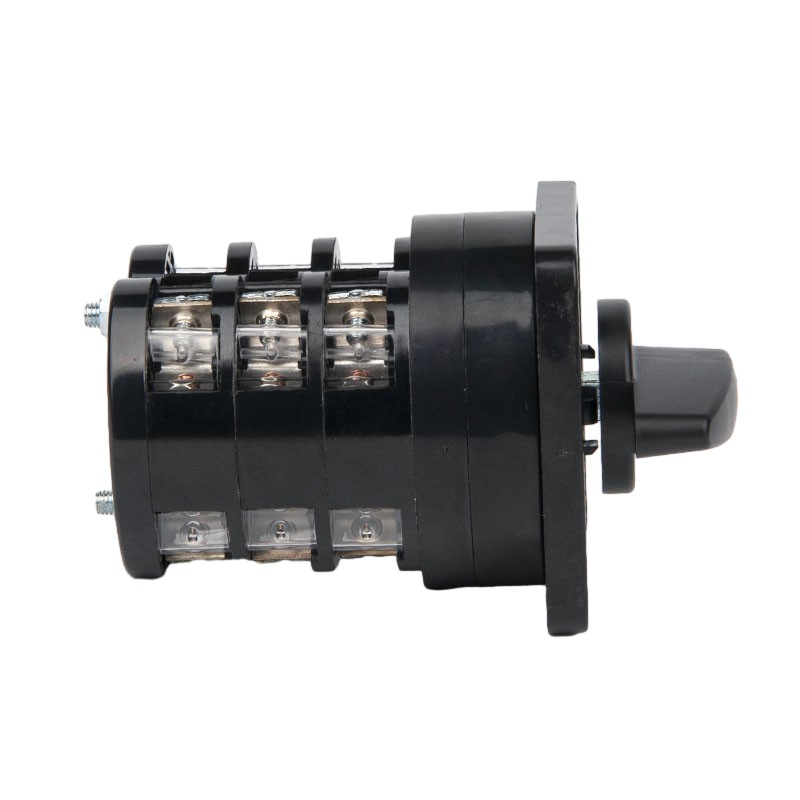

Contact system: The contacts are of double-break contact bridge structure, and the movable contacts are designed as automatic adjustment type, which can ensure the synchronization when turning on and off, effectively reduce the generation of arc, and improve the electrical life of the switch. The static contacts are mounted in the contact holders, which are operated by cams and brackets to realize the closure and disconnection of the contacts.

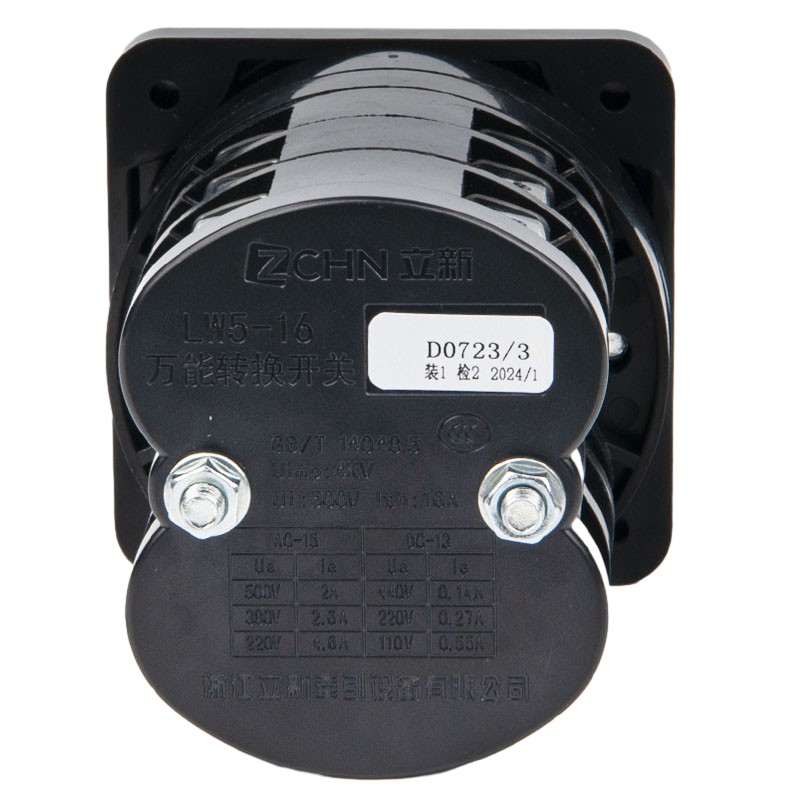

Shell and Connection Terminal: The shell is generally made of high-strength engineering plastics or metal, with good insulation and mechanical strength, to protect the internal electrical components and operating mechanism. Connection terminals for access to external circuits, usually with good electrical conductivity and mechanical stability, to ensure reliable circuit connection.

Performance features

Diversified control functions: can be used to convert electrical control lines, such as solenoid coils, electrical measuring instruments and servo motors, etc.; can also be used to directly control 5.5kW and the following three-phase squirrel-cage asynchronous motor starting, reversible switching, variable speed, etc., to meet the different electrical control requirements.

Long service life: mechanical life of up to 100 × 10⁴ times or more, the electrical life of the AC-15, DC-13 when 20 × 10⁴ times or more, under normal conditions of use, has a long service life, reducing the maintenance and replacement costs of equipment.

Higher operating frequency: the permitted normal operating frequency is 120 times / hour, suitable for electrical control occasions requiring frequent operation.

Good protection performance: the protection form has two kinds of open type and protective type, the protection level of the shell of the protective type products can reach IP40 and above, which can effectively prevent the intrusion of foreign objects and operators from accidentally touching the touchpoints, and improve the safety of use.

Applicable Scenarios

Industrial automation control system: In various types of industrial production equipment, such as machine tools, cranes, conveyor belts and other electrical control systems, used to realize the motor forward and reverse, variable speed control and switching between different working conditions.

Building electric field: It can be used in the control of lighting system, ventilation system, air-conditioning system and so on in the building to realize the switching of circuits and the conversion of equipment operation modes in different scenarios.

Power distribution box: as an important control element in the distribution box, it is used for switching and controlling the power supply of different branch circuits to ensure the normal operation of the power system and the safe use of electricity by the equipment.

Other electrical equipment: It can also be applied to various electrical equipment that needs circuit conversion and control, such as ships, mining machinery, agricultural machinery and so on.

Installation and Maintenance

Installation points: It should be installed in a dry, well-ventilated place without vibration and shock, and the installation position should be convenient for operation and maintenance. The installation should be fixed according to the installation dimensions in the product manual to ensure that the switch is firmly installed. At the same time, pay attention to whether the connection of the terminals is firm or not, to avoid heat generation, ignition and other faults due to loose contact.

Maintenance precautions: Regularly check whether the operation of the switch is flexible or not, whether the contacts are burnt or oxidized, etc. If there is any abnormality, it should be replaced in time. When cleaning the switch, it should be wiped with a dry, clean cloth, avoiding the use of wet cloth or corrosive detergent, so as not to damage the insulation performance and surface protection layer of the switch.
