LW26-20A with lock Cam Switch for Speed Change

LW26-20A with lock Cam Switch for Speed Change is your best choice.The switch effectively manages and regulates the speed of motors and machinery, providing seamless transitions between different speed settings. Suitable for a variety of applications, this switch is ideal for controlling motors in a variety of industrial and commercial environments, including conveyor systems, fans, pumps and other equipment requiring speed regulation.

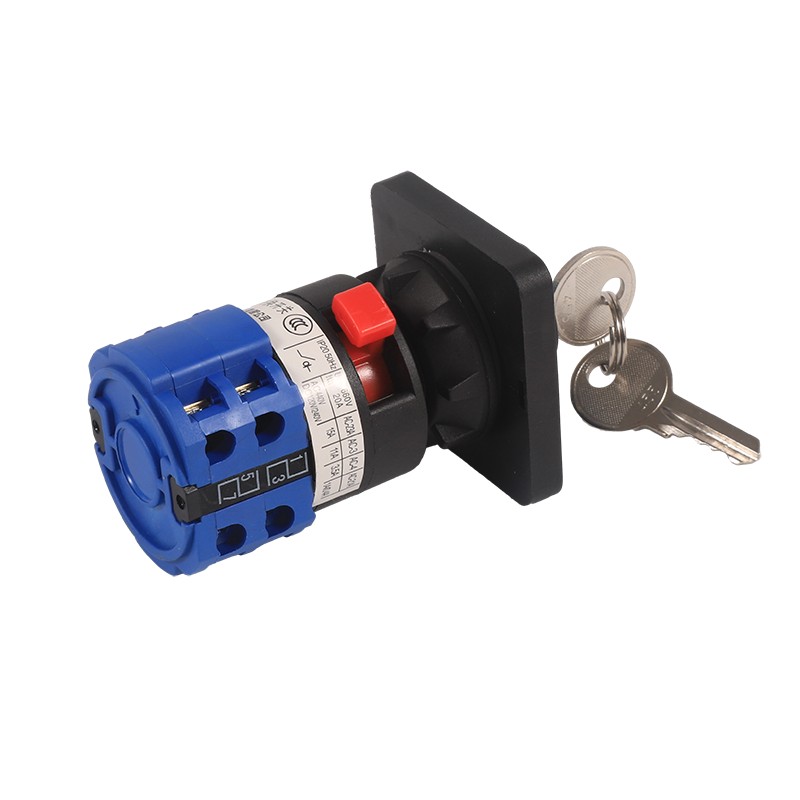

Model:LW26-20A/2P WITH LOCK

Send Inquiry

Product Description

LW26-20A with lock Cam Switch for Speed Change

Application range

Suitable for use in circuits with AC 50Hz, rated working voltage 440V and below, DC voltage 240V and below, rated current up to 160A.

Functional use

They can be used as circuit control switches, test equipment switches, motor control switches, master command control switches and changeover switches for welding machines, etc. For control or changeover operations, they can be used for manual and infrequent switching of circuits.

Derivative lockout products can be used as power disconnect switches for critical equipment to prevent misoperation and control operation by unauthorised personnel.

Performance Features

Small size, multi-function: compact structure, can achieve a variety of circuit switching functions in a small space.

Materials selection: to ensure product quality and reliable performance, the use of high quality materials.

Good insulation: high insulation performance to ensure safety of use.

Flexible conversion operation: easy to operate, the handle drives the rotor shaft and cam to push the contacts on or off, can easily realise the switching of different circuits.

Technical Parameters

Rated insulation voltage: 660V.

Rated heating current: 20A.

Rated working voltage: AC 240V, 440V, DC 240V.

Rated working current: different current values in different use categories, e.g. 20A in use categories AC-21A, AC-22A; 15A in use categories AC-23A.

Overall and mounting dimensions

The panel is square, the external dimension is 48×48mm, the installation dimension should be determined according to the specific model, for example, LW26-20M1 model, the installation dimension is 36×36mm.

Lixin LLW26-20A with lock Cam Switch for Speed Change Combination of operation mode and actuator position

Controls way	trait designation		Actuator position
Self-replicating type	A	0°30°	0-45°	0°-60°
	B	30°-0°30°	45°0°-45°	60°0°-60°
	X	60-30=0°30-60°
Locating type	C	0°30°	0°45°	0°60°
	D	30°0°30°	45°0°45°	60°0°60°
	E	30°0°30°60°	45°0°45°90°	60°060120°
	F	60°30°0°30°60°	90°45°0°45°90°	60°0°60°120°180°
	G	60°30°0°30°60°90°	90°45°0°45°90°135°	120°60°0°60°120°180°
	H	90°60°30°0°30°60°90°	135°90°45°0°45°90°135°
		90°60°30°0°30°60°90°120°	135°90°45°0°45°90°135°180°
	J	120°90°60°30°0°30°60°90°120°
	K	120°90°60°30°0°30°60°90°120°150°
	L	150°120°90°60°30°0°30°60°90°120°150°
	M	150°120°90°60°30°0°30°60°90°120°150°180°
	N		45° 45°	30°30°
	P				90°0°90
	T				0*90°
	V				90°0°
	R				270°0°90°180°
orientation Self-replicating type	Q	30°0°-30°	45-0°45°
	S	30°-0°60°	90°0°-45
	W		90-45°0°45-90°
	Z	120°-90°0⁰-30°	135°-90°0⁶-45°

Lixin Lw26 63 Cam Switch for Speed Change Type specification

Type specification	LW26-10 LW26-10G LW26-10X	LW26-20 LW26-20X LW26-20C	LW26-25	LW26-32 LW26-32F	LW26-40 LW26-40F	LW26-63 LW26-63F	LW26-125	LW26-160	LW26-250	LW26-315
Ui V	660/690	660	660	660	660	660	660	660	660	660
Ith A	10	20	25	32	40	63	125	160	250	315
Ue V	240440	24110240440	24110240440	240440	240440	240440	240440	240 440	240440	240440
le
AC-21A AC-22A A	1010	20 20	25 25	32 32		63 63	100 100	150 150	200200	315 315
AC-23A A	7.57.5	15 15	22 22	30 30	37 37	57 57	90 90	135 135		265 265
AC-3 A	5.55.5	11 11	15 15	22 22	30 30	36 36	75 75	95 95		110 110
AC-4 A	1.751.75	3.5 3.5	6.5 6.5	11 11		15 15	30 30	55 55		95 95
AC-15 A	2.51.5	5 4	8 5	14 6
DC-13 A		12 0.40.4	20 0.5 0.5
Rated control power P
AC-23A KW	1.8 3	3.7/2.5 7.5/3.7	5.5/311/5.5	75/415/75	185/918.5/9	15/1030/18.5	30/1545/22	37/2275/37		75/37132/55
AC-2 KW	2.53.7	4 7.5	5.5 11	75 15		185 30	30 45	37 55		55 95
AC-3 KW	1.52.2	3/22 5.5/3	4/3 7.5/3.7	55/411/5.5	15/7.515/7.5	11/618.5/11	15/7.530/13	22/1137/18.5		37/2255/30
AC-4 KW	0.370.55	0.55/0.751.5/1.5	1.5/1.13/2.2	27/1.555/3		55/2475/4	6/312/5.5	10/415/7.5		15/7.525/11

Lixin Lw26 63 Cam Switch for Speed Change Normal working condition

1. The ambient air temperature does not exceed +40°C, and the average temperature over 24 hours does not exceed 25°C.

2. The lower limit of the ambient air temperature does not exceed -25°C.

3. The installation location's altitude does not exceed 2000m.

4. When the maximum temperature is +40°C, the relative humidity of the air does not exceed 50%. Higher relative humidity may be allowed at lower temperatures, for example, reaching 90% at 20°C. Special measures should be taken to address condensation occasionally caused by temperature changes.
