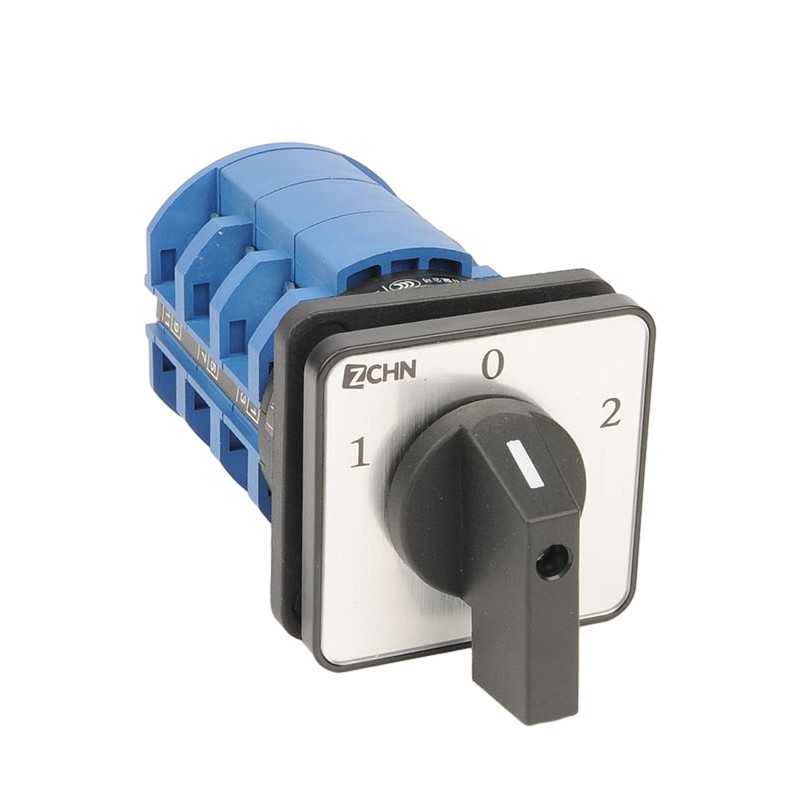

LW26-63A/3Position1-0-2 Rotary Cam Switch
LW26-63A/3Position1-0-2 Rotary Cam Switch is offered by China manufacturer Lixin. The 3-position on-off-on rotary cam switch is a versatile electrical switch that allows for three distinct positions: off, on, and on. It's designed to control the flow of electricity in circuits with precision and flexibility.
Model:LW26-63A/3P
Send Inquiry
Product Description
Basic parameter
Rated current: 63A.
Rated voltage: 690V is common.
Number of poles: There are usually 4-pole versions, such as LW26-63/4.
Number of positions: 3 positions, corresponding to 1-0-2.
Material and appearance
Material: Plastic material is mostly used, and some may contain metal parts, such as the shell of LW26-63/4 is generally plastic, and its contact points may be silver.
Color: Common colors are black, blue, etc., such as LW26-63/4 has black/blue options.
Functional characteristics
Control function: can be used to control the circuit of the motor and other equipment, to achieve the switch of different working states, by rotating the CAM to change the connection state of the contact, so as to control the circuit on and off.
Multi-position selection: The design of 3 positions enables it to meet a variety of different control requirements, for example, in some devices, it can correspond to the three states of the device, namely, forward, stop and reverse.
Installation mode
For example, Baomain products of the same type are clearly installed on the panel, which is easy to operate and maintain on the control panel of the device.
Connection mode
Screw terminal wiring, such as some products of LW26-63 series, is used to fix the wire through screw tightening to ensure the fastness and conductivity of the wiring, convenient for users to make electrical connections.
Application field
Widely used in industrial control, electrical equipment, mechanical equipment and other fields, such as in some automatic production line motor control, distribution box circuit switching and other scenarios are used.
Offering an innovative solution, the LW26 series serves as an ideal upgrade, capable of replacing older switch models such as LW2, LW5, LW6, LW8, LW12, HZ5, HZ10, and HZ12, as well as imported equipment's switching switches.
LW26-63A/3Position1-0-2 Rotary Cam Switch Combination of operation mode and actuator position
|
Controls way |
trait designation |
Actuator position |
|||
|
Self-replicating type |
A |
0°30° |
0-45° |
0°-60° |
|
|
B |
30°-0°30° |
45°0°-45° |
60°0°-60° |
||
|
X |
60-30=0°30-60° |
||||
|
Locating type |
C |
0°30° |
0°45° |
0°60° |
|
|
D |
30°0°30° |
45°0°45° |
60°0°60° |
||
|
E |
30°0°30°60° |
45°0°45°90° |
60°0*60*120° |
||
|
F |
60°30°0°30°60° |
90°45°0°45°90° |
60°0°60°120°180° |
||
|
G |
60°30°0°30°60°90° |
90°45°0°45°90°135° |
120°60°0°60°120°180° |
||
|
H |
90°60°30°0°30°60°90° |
135°90°45°0°45°90°135° |
|||
|
90°60°30°0°30°60°90°120° |
135°90°45°0°45°90°135°180° |
||||
|
J |
120°90°60°30°0°30°60°90°120° |
||||
|
K |
120°90°60°30°0°30°60°90°120°150° |
||||
|
L |
150°120°90°60°30°0°30°60°90°120°150° |
||||
|
M |
150°120°90°60°30°0°30°60°90°120°150°180° |
||||
|
N |
45° 45° |
30°30° |
|||
|
P |
90°0°90 |
||||
|
T |
0*90° |
||||
|
V |
90°0° |
||||
|
R |
270°0°90°180° |
||||
|
orientation Self-replicating type |
Q |
30°0°-30° |
45-0°45° |
||
|
S |
30°-0°60° |
90°0°-45 |
|||
|
W |
90-45°0°45-90° |
||||
|
Z |
120°-90°0⁰-30° |
135°-90°0⁶-45° |
Lixin 3 Position On-off-On Rotary Cam Switch Type specification
|
Type specification |
LW26-10 LW26-10G LW26-10X |
LW26-20 LW26-20X LW26-20C |
LW26-25 |
LW26-32 LW26-32F |
LW26-40 LW26-40F |
LW26-63 LW26-63F |
LW26-125 |
LW26-160 |
LW26-250 |
LW26-315 |
|
Ui V |
660/690 |
660 |
660 |
660 |
660 |
660 |
660 |
660 |
660 |
660 |
|
Ith A |
10 |
20 |
25 |
32 |
40 |
63 |
125 |
160 |
250 |
315 |
|
Ue V |
240440 |
24110240440 |
24110240440 |
240440 |
240440 |
240440 |
240440 |
240 440 |
240440 |
240440 |
|
le |
||||||||||
|
AC-21A AC-22A A |
1010 |
20 20 |
25 25 |
32 32 |
63 63 |
100 100 |
150 150 |
200200 |
315 315 |
|
|
AC-23A A |
7.57.5 |
15 15 |
22 22 |
30 30 |
37 37 |
57 57 |
90 90 |
135 135 |
265 265 |
|
|
AC-3 A |
5.55.5 |
11 11 |
15 15 |
22 22 |
30 30 |
36 36 |
75 75 |
95 95 |
110 110 |
|
|
AC-4 A |
1.751.75 |
3.5 3.5 |
6.5 6.5 |
11 11 |
15 15 |
30 30 |
55 55 |
95 95 |
||
|
AC-15 A |
2.51.5 |
5 4 |
8 5 |
14 6 |
||||||
|
DC-13 A |
12 0.40.4 |
20 0.5 0.5 |
||||||||
|
Rated control power P |
||||||||||
|
AC-23A KW |
1.8 3 |
3.7/2.5 7.5/3.7 |
5.5/311/5.5 |
75/415/75 |
185/918.5/9 |
15/1030/18.5 |
30/1545/22 |
37/2275/37 |
75/37132/55 |
|
|
AC-2 KW |
2.53.7 |
4 7.5 |
5.5 11 |
75 15 |
185 30 |
30 45 |
37 55 |
55 95 |
||
|
AC-3 KW |
1.52.2 |
3/22 5.5/3 |
4/3 7.5/3.7 |
55/411/5.5 |
15/7.515/7.5 |
11/618.5/11 |
15/7.530/13 |
22/1137/18.5 |
37/2255/30 |
|
|
AC-4 KW |
0.370.55 |
0.55/0.751.5/1.5 |
1.5/1.13/2.2 |
27/1.555/3 |
55/2475/4 |
6/312/5.5 |
10/415/7.5 |
15/7.525/11 |
Lixin 3 Position On-off-On Rotary Cam Switch Normal working condition
1. The ambient air temperature must remain within the range of -25°C to +40°C, with a 24-hour average not exceeding 25°C.
2. The lower limit of the ambient air temperature should not drop below -25°C.
3. Installation locations should not exceed an altitude of 2000m above sea level.
4. At maximum temperature conditions of +40°C, the relative humidity of the air should not exceed 50%. Higher relative humidity levels may be permissible at lower temperatures, such as reaching 90% at 20°C. Special precautions must be taken to mitigate condensation resulting from temperature fluctuations.
Lixin 3 Position On-off-On Rotary Cam Switch Installation condition：
1. The switch is installed in an environment with pollution level 3 conditions.
2. Installation should be carried out according to the instructions provided by our factory.
Lixin 3 Position On-off-On Rotary Cam Switch sort：
1 Divided by use
(1) Switch for main circuit conversion;
(2) Transfer switch for direct control of the motor; (3) Transfer switch for master control and measurement.
2 According to the operation mode
(1) Positioning type;
(2) self-replicating type;
(3) Positioning self-replicating type.
3 According to the contact system
(1) The positioning type switch has 1 to 12 sections (only 8 sections for 63A and above switches);
(2) The self-restoring type transfer switch has 1 to 3 sections (LW26-20; Verses 1 to 8)
(3) The transfer switch for direct control of the motor mainly has 1 to 6 sections.
Lixin 3 Position On-off-On Rotary Cam Switch Overall dimensions and mounting dimensions：
