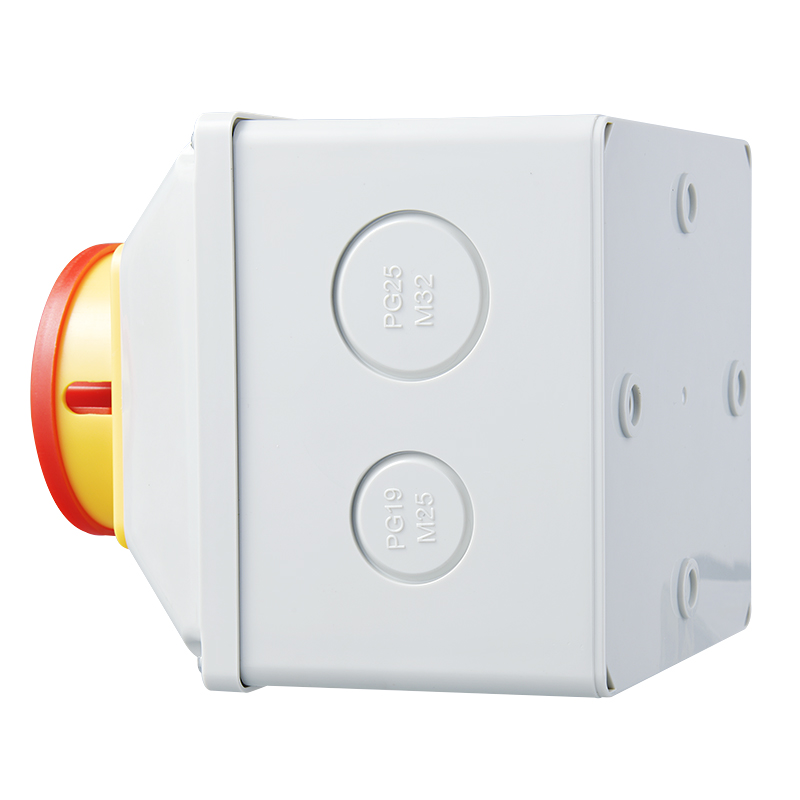

LW26GS Waterproof box with Rotary Switch

LW26GS Waterproof box with Rotary Switch is available in various specifications. It is available in a wide range of specifications, such as different current sizes, voltage levels, number of poles, etc., which can be selected according to the need to adapt to a variety of circuit scenarios. It has a high degree of protection. It can be effectively waterproof, dustproof and can adapt to the more severe use of the environment. In terms of features, it has a variety of functions, easy to operate, through the rotary switch can easily achieve the corresponding control, and the use of high-quality materials to ensure that the switching contact is reliable, good safety performance, and easy to install, which can save time and cost for installation work.

Model:LW26GS Waterproof box

Send Inquiry

Product Description

LW26GS Waterproof box with Rotary Switch of Specification:

Basic characteristics

Current specification: 20A, 25A, 32A, 63A, etc., which can meet different load requirements, such as LW26GS-20, LW26GS-25, LW26GS-32, LW26GS-63 and other models.

Voltage level: The rated working voltage is generally 440V AC and below, which is suitable for many common industrial and civil voltage environments.

Number of poles: There are usually 4 poles and other options that can be used to control circuits with different numbers of phases. For example, LW26GS-20/04-1, LW26GS-20/04-2 and so on are 4-pole products.

Degree of Protection: IP65 or higher, with good waterproof and dustproof performance, it can work reliably in humid, dusty and other harsh environments.

Characteristics

Versatile functionality: It can be widely used in the control and protection of all kinds of electrical equipment, such as forward and reverse control of motors and double power switching, with functions of power cut-off, main control load disconnection, etc.

Lixin LW26 Waterproof box with Rotary Switch of Installation condition

(1) The switch is installed in the environmental conditions of pollution level 3;

(2) Install according to the instructions provided by the factory.

Lixin LW26GS Waterproof box with Rotary Switch the combination of operation mode and actuator position is shown in the following table:

Controls way	trait designation		Actuator position
Self-replicating type	A	0°30°	0-45°	0°-60°
	B	30°-0°30°	45°0°-45°	60°0°-60°
	X	60-30=0°30-60°
Locating type	C	0°30°	0°45°	0°60°
	D	30°0°30°	45°0°45°	60°0°60°
	E	30°0°30°60°	45°0°45°90°	60°060120°
	F	60°30°0°30°60°	90°45°0°45°90°	60°0°60°120°180°
	G	60°30°0°30°60°90°	90°45°0°45°90°135°	120°60°0°60°120°180°
	H	90°60°30°0°30°60°90°	135°90°45°0°45°90°135°
		90°60°30°0°30°60°90°120°	135°90°45°0°45°90°135°180°
	J	120°90°60°30°0°30°60°90°120°
	K	120°90°60°30°0°30°60°90°120°150°
	L	150°120°90°60°30°0°30°60°90°120°150°
	M	150°120°90°60°30°0°30°60°90°120°150°180°
	N		45° 45°	30°30°
	P				90°0°90
	T				0*90°
	V				90°0°
	R				270°0°90°180°
orientation Self-replicating type	Q	30°0°-30°	45-0°45°
	S	30°-0°60°	90°0°-45
	W		90-45°0°45-90°
	Z	120°-90°0⁰-30°	135°-90°0⁶-45°
